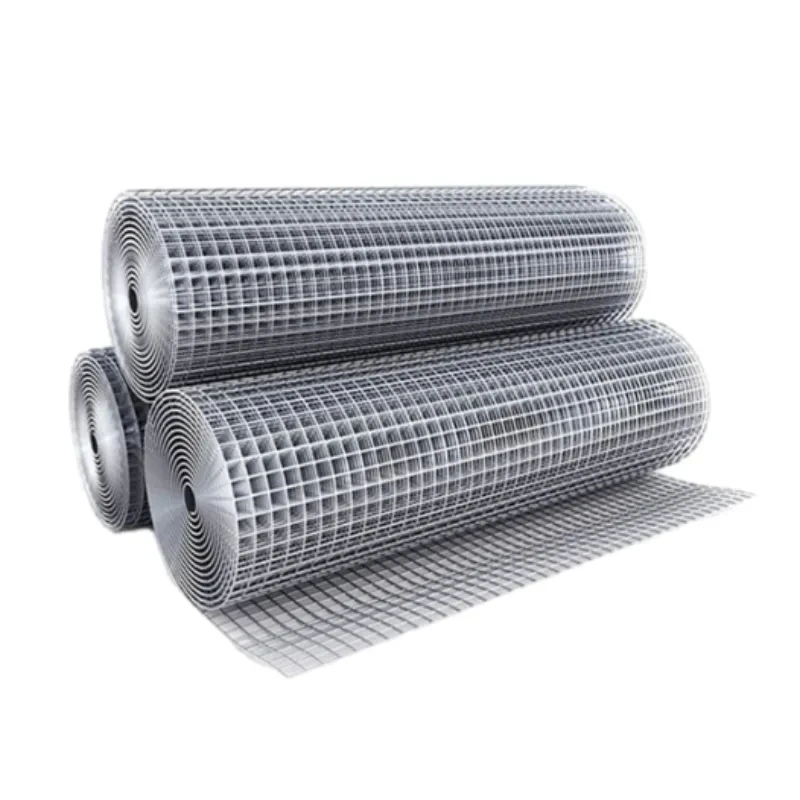

Product Introduction
✦Electric welding mesh is made of high quality low carbon steel wire row welding, and then cold plating (electroplating), hot plating, PVC coated plastic surface passivation, plasticizing treatment.
✦Smooth surface.
✦Uniform mesh& firm solder joint.
✦Good performance of local machining.
✦The weather & corrosion resistance is good.

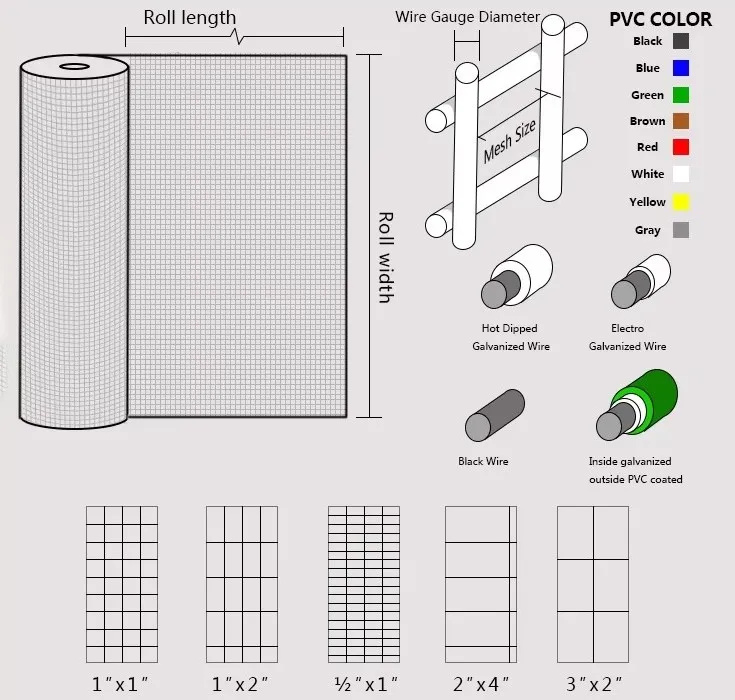

Product Parameter
|
Specification
|
|
Opening
|
Wire Diameter
|
Width 0.4-2m
Length 5-50m
|
Electric galvanized before welded,
Electric galvanized after welded,
Hot-dipped galvanized before welded,
Hot-dipped galvanized after welded,

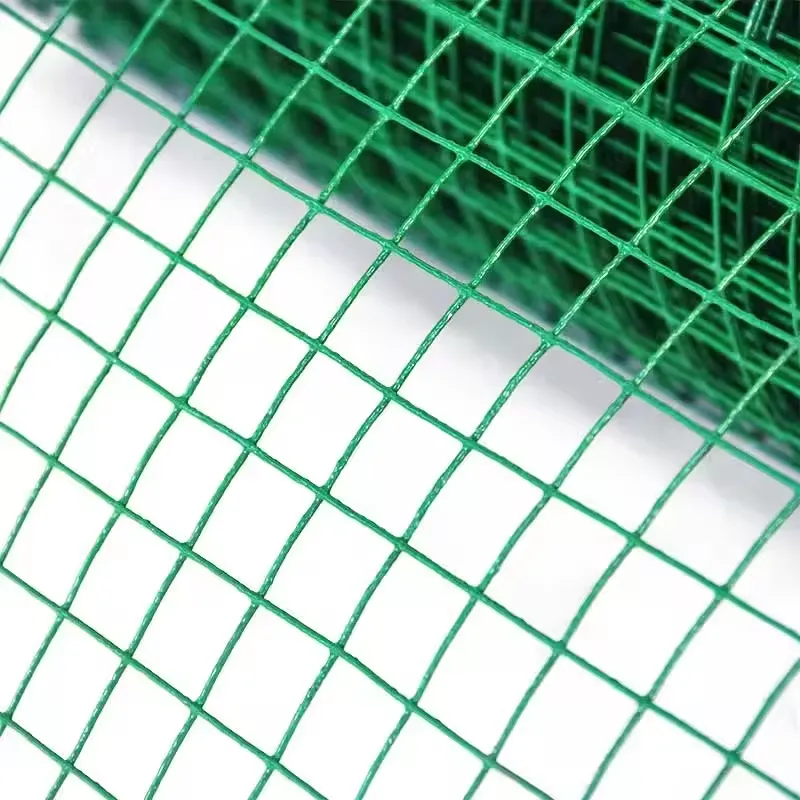

PVC coated,
Stainless steel wire
|
|
Inch
|
Metric Unit
|
|
1/4"×1/4"
|
6.4mm×6.4mm
|
BWG24-22
|
|
3/8"×3/8"
|
10.6mm×10.6mm
|
BWG22-19
|
|
1/2"×1/2"
|
12.7mm×12.7mm
|
BWG23-16
|
|
5/8"×5/8"
|
16mm×16mm
|
BWG21-18
|
|
3/4"×3/4"
|
19.1mm×19.1mm
|
BWG21-16
|
|
1"×1/2"
|
25.4mm×25.4mm
|
BWG21-16
|
|
1-1/2"×1-1/2"
|
38mm×38mm
|
BWG19-14
|
|
1"×2"
|
25.4mm×12.7mm
|
BWG16-14
|
|
2"×2"
|
50.8mm×50.8mm
|
BWG15-12
|
|
2"×4"
|
101.6mm×101.6mm
|
BWG15-12
|
|
4"×4"
|
101.6mm×152.4mm
|
BWG15-12
|
|
4"×6"
|
101.6mm×152.4mm
|
BWG15-12
|
|
6"×6"
|
152.4mm×152.4mm
|
BWG15-12
|
|
6"×8"
|
15.4mm×203.2mm
|
BWG14-12
|
|

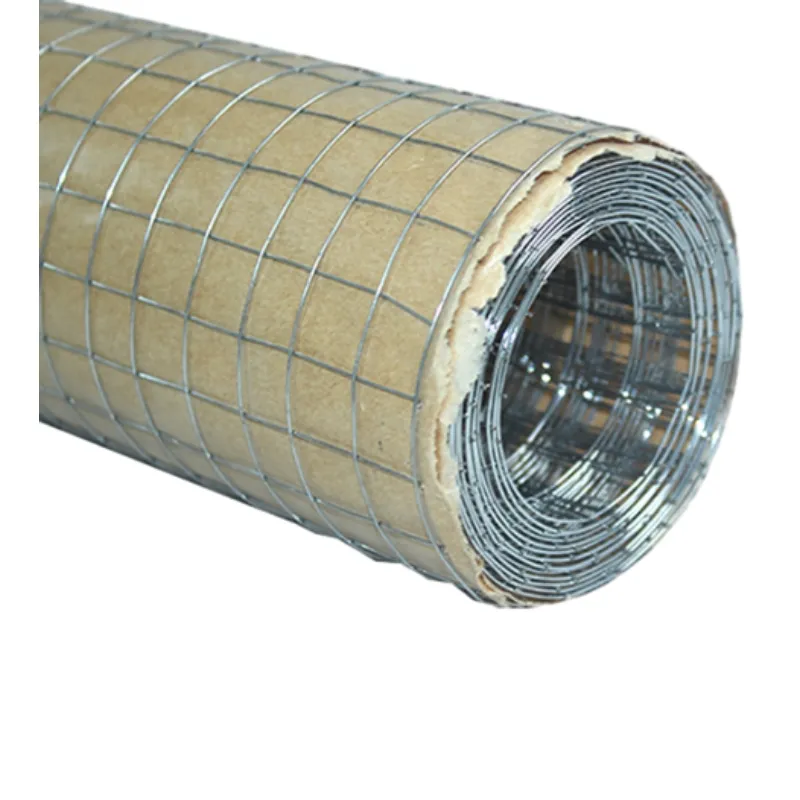

Packing: In waterproof paper in rolls. Custom packing available at request.
|
Product Color
✦Electrostatic spraying post-treatment, color can be customized.
✦Regular color as Galvanized / Black Ral9005 / Gray Ral7016 / Green Ral6005.

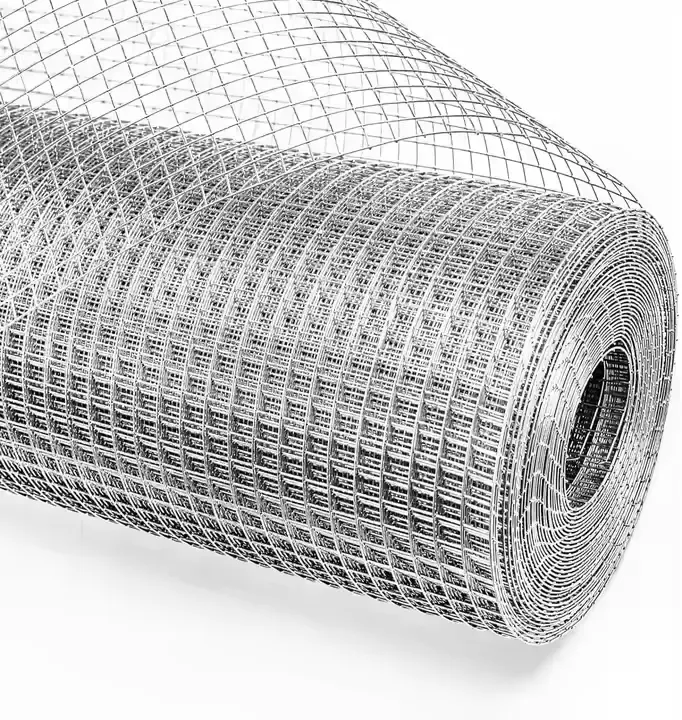

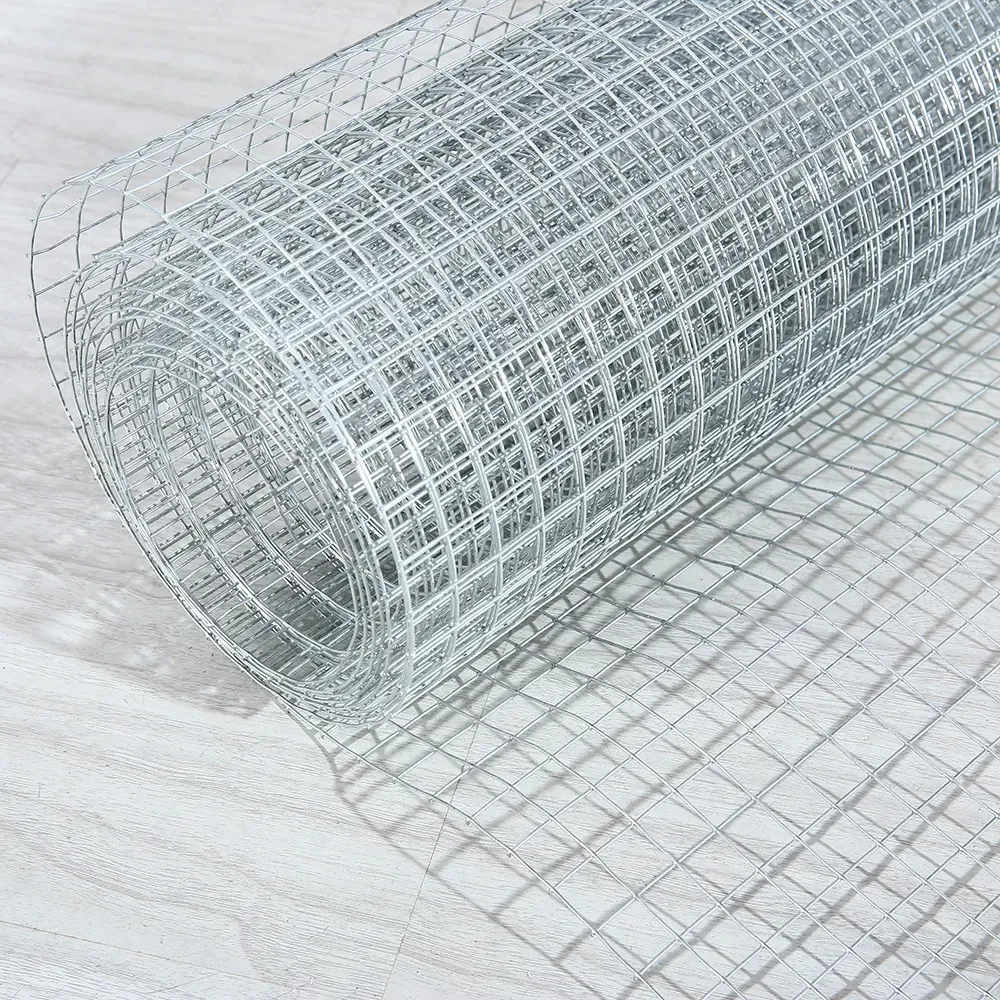

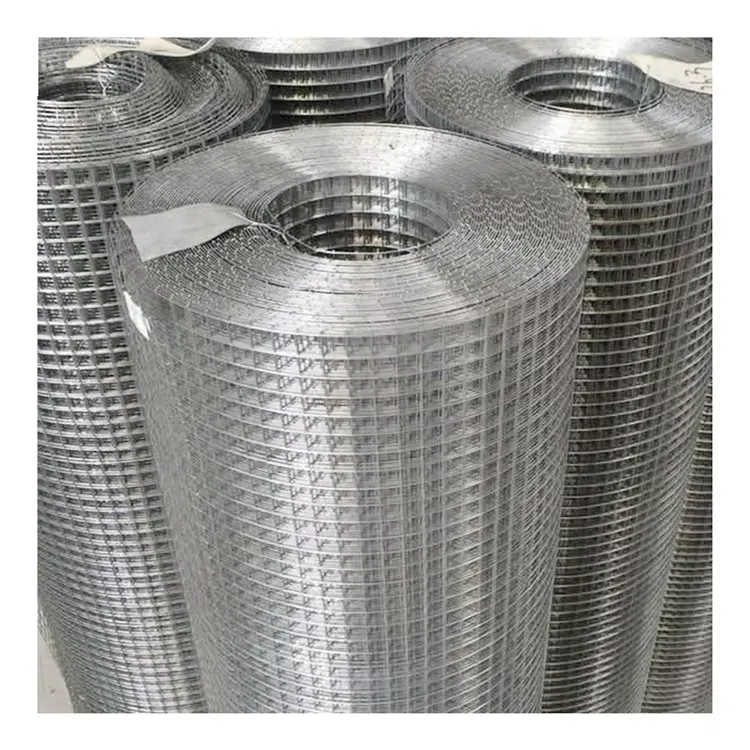

Products Details

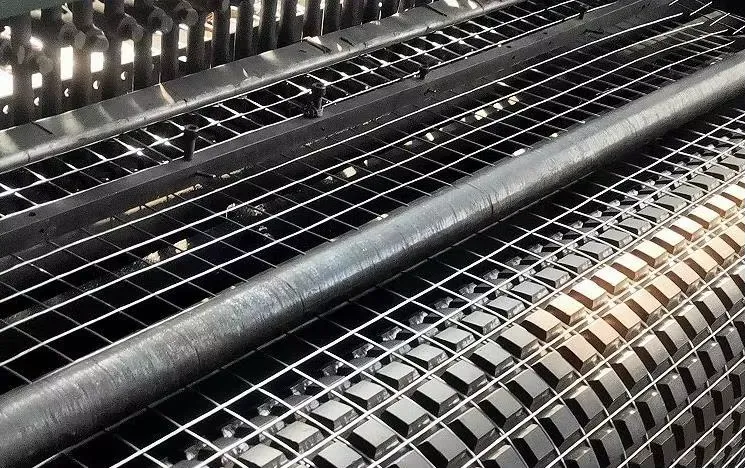

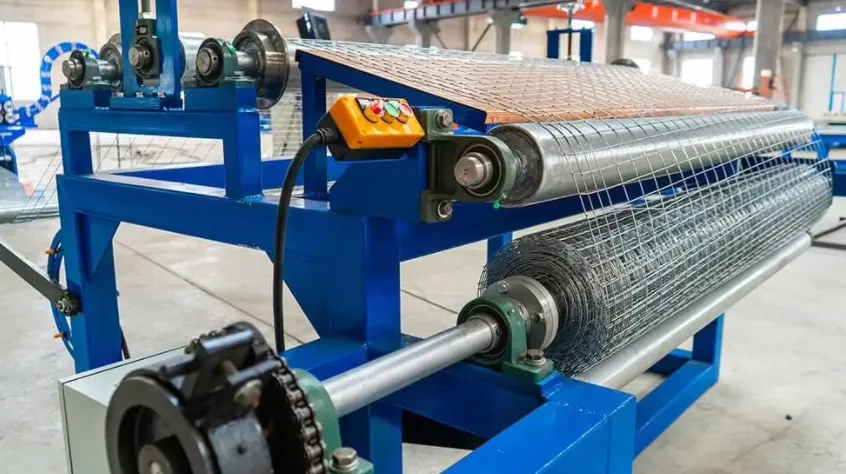

Production Processing

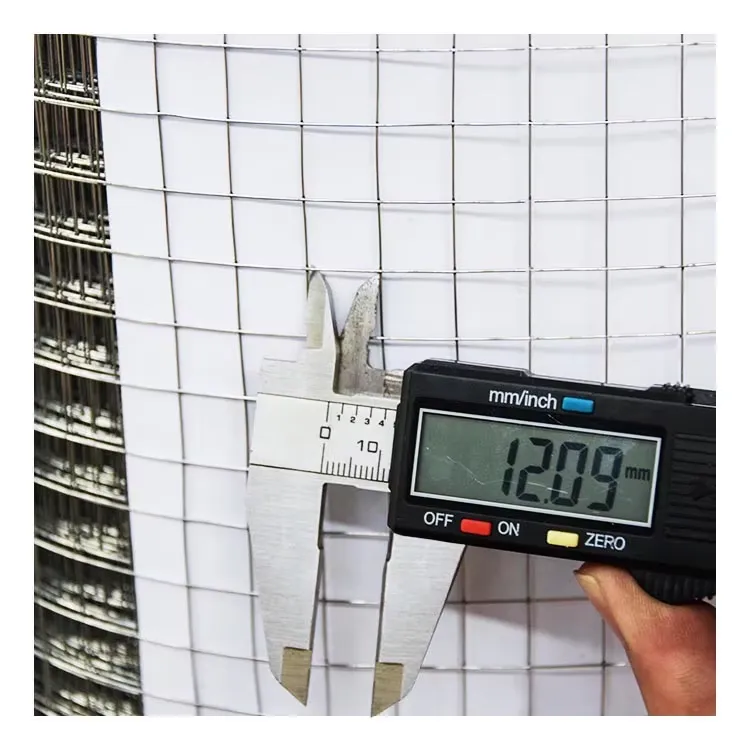

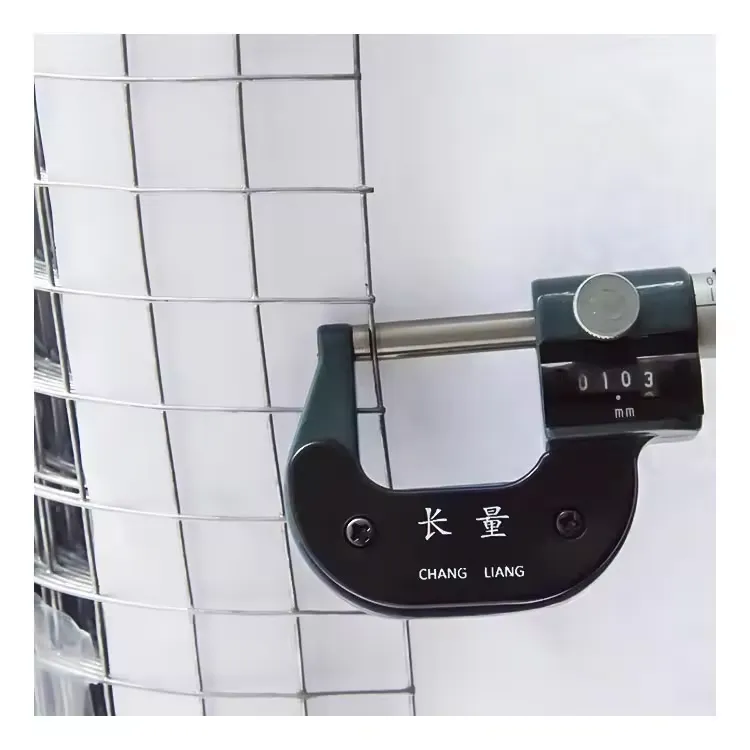

Product Quality Inspection

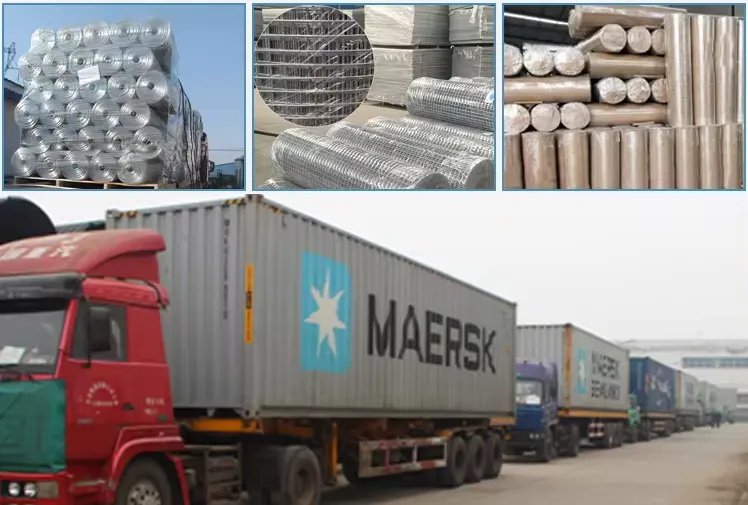

Packing & Delivery
Application Scenarios
Uses include:

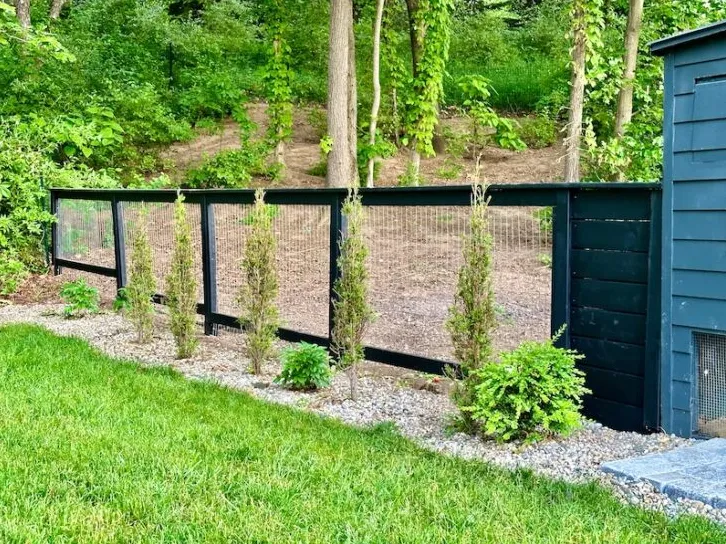

✦Fence, Animal Safety Net
✦Slurry Net in Petroleum
✦Sifting Mesh and Screening Mesh in Chemical
✦Acid Washing Mesh
